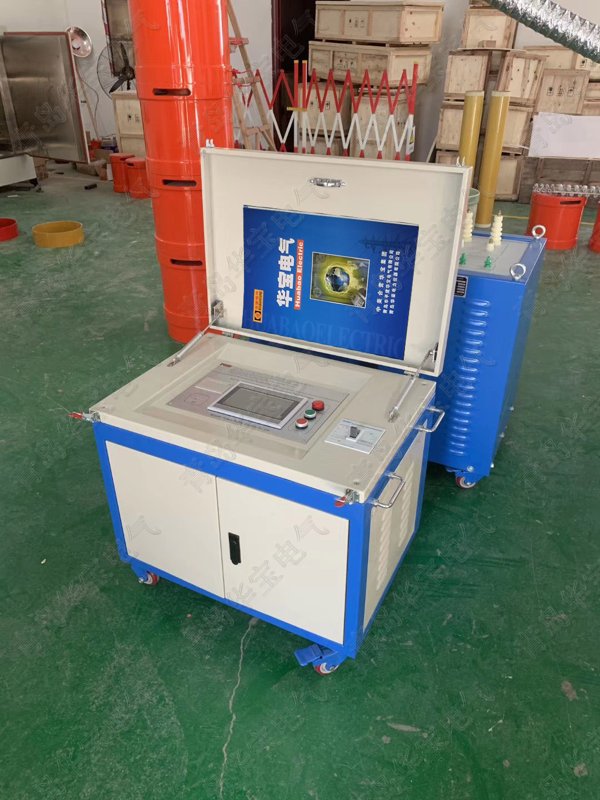

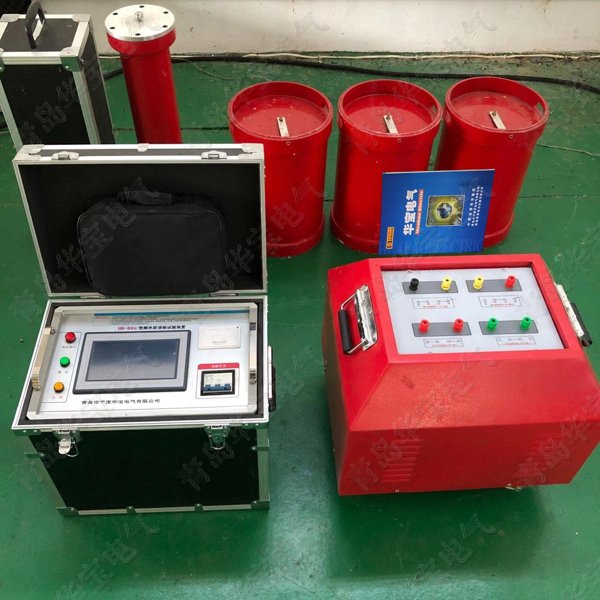

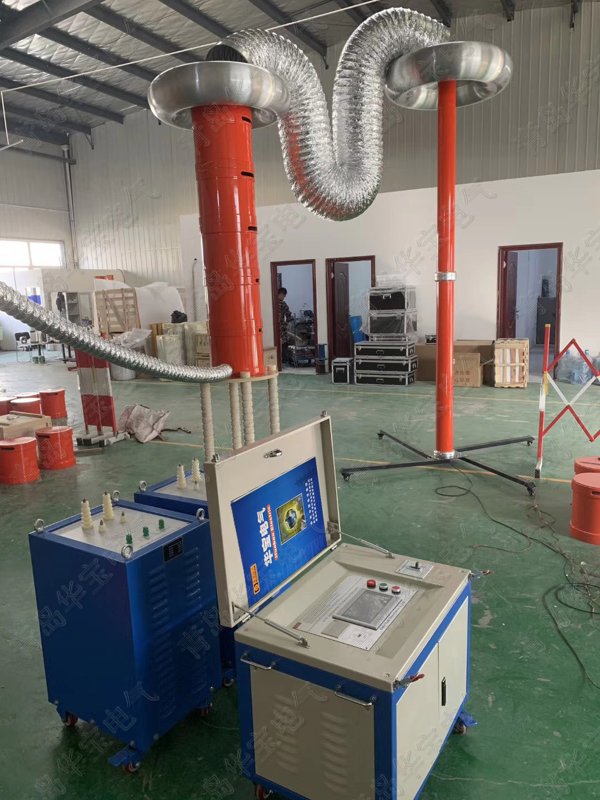

Huabao brand frequency conversion resonance high voltage generator is a frequency conversion resonance withstand voltage test device of high intelligence, large capacity, multi protection and building block frequency conversion resonance high voltage generator developed and produced by Huabao electric and Huahao power based on American technology and national power test standards.

HB-BXG, hand micro 186 + 5322 + 5978, qq1123 + 134968

1. Output standard sine wave, distortion rate < 0.5%

2. It can set voltage, frequency, protection current and test time

3. Automatic frequency and voltage regulation, which can store 1000 groups of experimental data

4. Frequency: 30-320hz, resolution: 0.01-0.001hz

5. Ultra small, light and building block type dry-type reactor and dry-type transformer

6. It has three working modes, which are convenient for users to choose flexibly and improve the test speed. The working modes are: full-automatic mode, manual mode, automatic tuning and manual boost mode

7. During automatic frequency scanning, the frequency starting point can be set arbitrarily within the specified range, and the frequency scanning direction can be selected upward and downward. At the same time, the large LCD screen displays the scanning curve, which is convenient for users to intuitively understand whether to find the resonance point

8. DSP platform technology is adopted, which can easily increase or decrease functions and upgrade according to users' needs, and also make the man-machine exchange interface more humanized.
