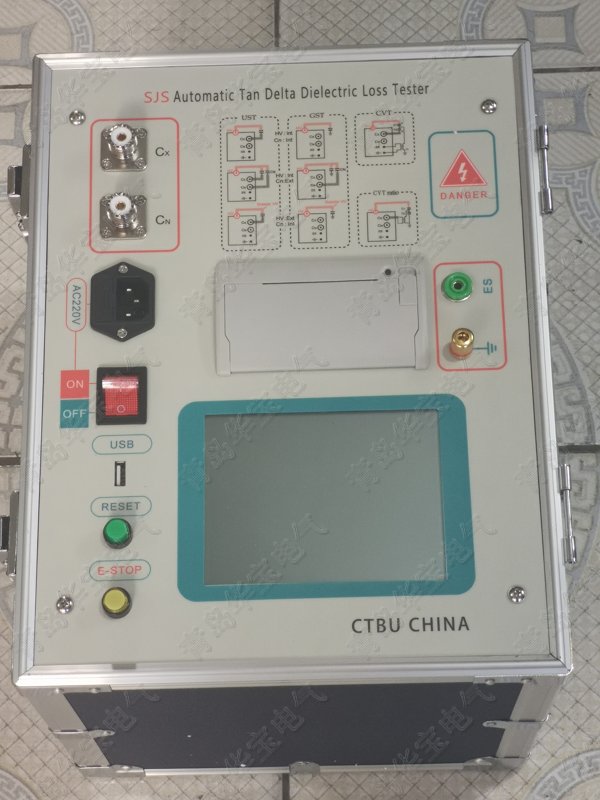

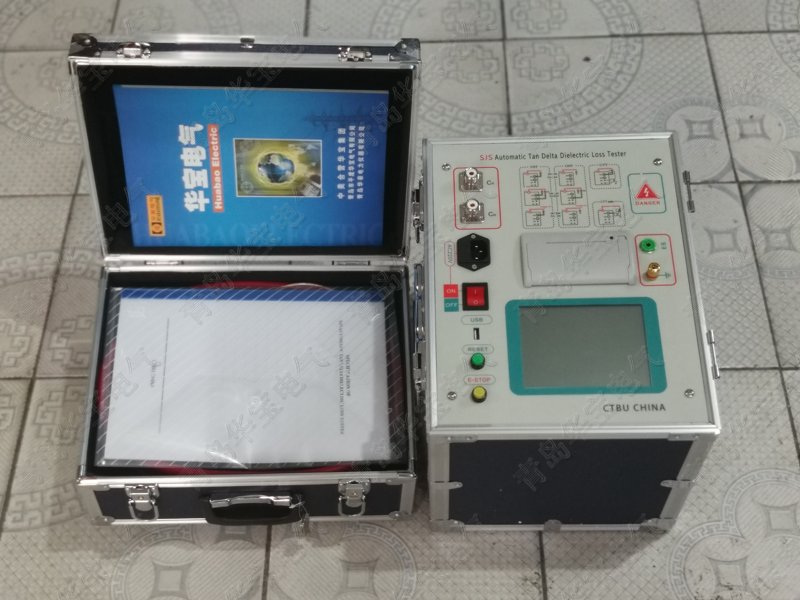

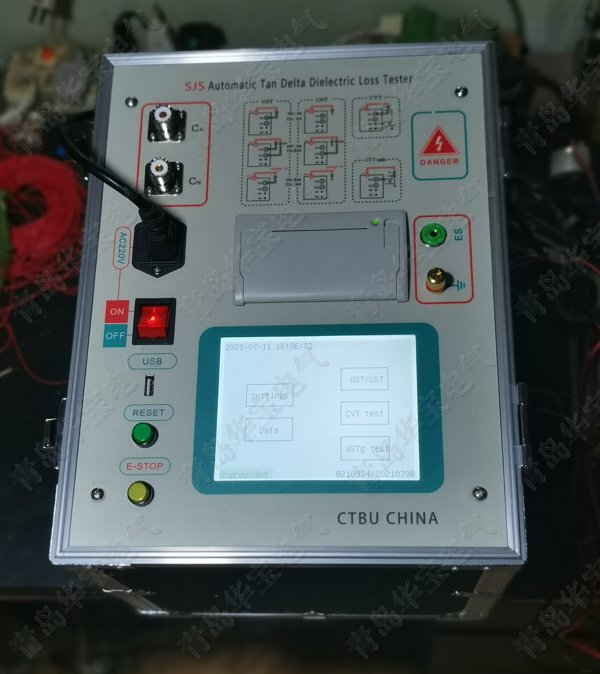

Dielectric loss tester, frequency conversion anti-interference dielectric loss tester, touch screen dielectric loss tester

The HB-JS3000 dielectric loss tester provided by Huabao electric adopts the new generation of frequency conversion and different frequency anti-interference measures, and the new generation of complex current method to measure capacitance, dielectric loss and other parameters. The positive and negative test method and reverse wiring test adopt ivddv technology to eliminate the phenomenon of data instability. The accuracy, applicability and anti-interference of the instrument have been widely used in power supply bureaus all over the country It has been verified in the 500kV voltage level of the power plant.

HB-JS3000, hand micro 186 + 5322 + 5978, qq1123 + 134968

1. The single chip microcomputer controls the Chinese display menu prompt for automatic test, and the large screen touch screen can be selected

2. The complex current method has high accuracy in measuring capacitance, dielectric loss and other parameters

3. Using different frequency or non shift frequency test method has strong anti-interference

4. The positive and negative test method adopts ivddv technology to eliminate the phenomenon of data instability

5. It has the functions of overcurrent, grounding and electric shock protection

6. Tested capacity 4pf-90000pf dielectric loss 0-100%

7. Low voltage output: output voltage 3-50v, output current 3-30A

8. High voltage output setting range: 0.5-10kv 22 gear continuous regulation

9. Support C1 and C2 functions of primary wiring and simultaneous measurement of CVT; Support bus grounding

Measurement of C11 function and CVT transformation ratio by reverse wiring low voltage shielding method

10. The accuracy, applicability and anti-interference of the instrument have been widely used in power supply bureaus all over the country

It has been verified in the 500kV voltage level of the power plant.

11. You can choose whether to multi-channel, whether to connect external voltage standards, whether to measure both positive and negative, whether to measure C1C2 together, whether to have LCR test function, whether to have insulation resistance test function, etc

Supply: dielectric loss tester, automatic anti-interference dielectric loss tester, touch screen dielectric loss tester

Main products: microcomputer relay protection tester, gas relay calibrator, gas relay calibrator, large current generator, thermal relay calibrator, leakage detection relay calibrator, cable core alignment device, DC high voltage generator, high voltage digital megohmmeter, transformer oil withstand voltage tester, DC resistance tester, loop resistance tester, cable fault tester Multifunctional power parameter tester, analog circuit breaker (switch), test transformer, AC / DC withstand voltage device, comprehensive tester for volt ampere characteristics, intelligent clamp phase volt ampere meter, nuclear phase breaker, switch dynamic characteristic tester, transformer ratio group tester

For details, please visit: http://www.hbdqgs.com or http://www.qdhhdl.com or http://www.hbdqgs.net Query.

Solemnly declare: Qingdao Huabao Electric has no branch or distribution office, and no relatives do this business. Those similar or similar units or individuals have nothing to do with our company. Please identify the Huabao (HB) brand when purchasing and contact our company directly to prevent counterfeiting. For details, please consult the hotline 186 + 5322 + 5978.
