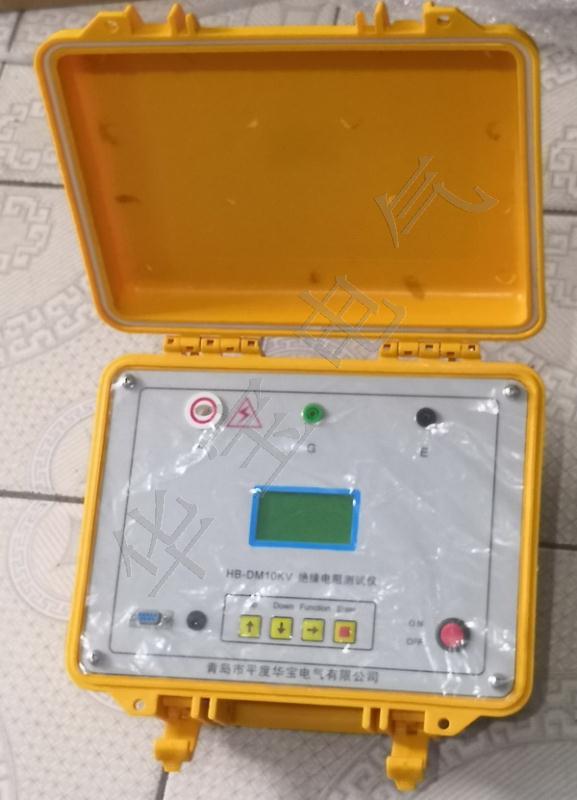

Intelligent Insulation Resistance Tester

HB-DM10KV intelligent insulation resistance tester is Pingdu Warburg Electric Power Co., Ltd. and Qingdao, China Hao Instrument Co., Ltd. to develop and produce a new generation of insulation resistance testing devices, products high output voltage, selectable gear and more, current is large , anti-interference ability, and can automatically calculate the leakage current test absorption ratio and polarization index, the English interface products have been exported to Southeast Asia and other countries, the electricity sector recommended products.

HB-DM10KV  186+5322+5978  QQ1123+134968

1, using 32-bit micro-controller, the whole Chinese operation interface, easy to operate.

2, automatic calculation of the absorption ratio and polarization index, and automatically store 15 seconds, 1 minute, 10 minutes to facilitate the analysis of data per minute.

3, the test voltage: 0.5Kv, 1KV, 2.5KV, 5KV, 8KV, 10KV output short circuit current is greater than 5mA.

4, measuring range: 0.1M-400GΩ cable voltage test can show leakage currents

5, anti-interference ability, can meet EHV substation site operation.

6, the test is completed automatically discharged and real-time monitoring the discharge process.

7, containing a rechargeable battery and charger, full power can be used continuously for 6 to 12 hours.

8, is a measure of transformers, transformers, generators, high voltage motors, power capacitors, power cables, surge arresters and other ideal for insulation resistance tester
